ZONE CONTROL VALVE (ZCVA) ASSEMBLY

A Zone Control Valve Assembly (ZCVA) is an essential component of a fire sprinkler system that allows for individual control and isolation of different zones within the system. It enables selective activation and deactivation of water flow to specific areas or sections of a building during maintenance, testing, or in the event of a fire. The ZCVA is typically installed in conjunction with a main control valve and serves as a means of dividing the sprinkler system into manageable zones.

Here are the key components and functions of a Zone Control Valve Assembly:

1. Zone Control Valves: The ZCVA consists of multiple zone control valves, each responsible for controlling water flow to a specific zone or area of the sprinkler system. These valves are typically electrically or pneumatically actuated and can be opened or closed based on command.
2. Control Panel: The control panel is the central control unit that interfaces with the zone control valves. It allows operators to monitor and control the operation of the valves individually or in groups. The control panel may include buttons, switches, indicators, and a user-friendly interface to facilitate easy operation and monitoring.
3. Zone Isolation: The primary function of the ZCVA is to enable zone isolation. This means that in the event of a fire or for maintenance purposes, individual zones can be isolated by closing the respective zone control valves. By isolating a specific zone, water flow is restricted to that area, preventing water from reaching other zones.
4. Testing and Maintenance: The ZCVA facilitates testing and maintenance of the sprinkler system. By closing the zone control valves, specific areas can be isolated for testing, repairs, or inspections without interrupting the operation of the entire system. This allows for efficient maintenance and reduces the potential impact on the building’s occupants.
5. Fire Response: In the event of a fire, the zone control valves corresponding to the affected area or zone are opened, allowing water to flow and suppress the fire. The ability to selectively activate the valves based on fire location helps to localize the water flow, reducing water damage and improving firefighting effectiveness.

Zone control valve is combination of 4 parts:

1. SIGNAL BUTTERFLY VALVE

It is a throttling device suitable for fire protection

system in high-rise buildings and other pipeline

systems that need to display the valve switching

status.

2. WATER FLOW INDICATOR

It provides real-time information about the water flow rate through different zones of a system.

SPRESSURE GAUGE

Pressure gauge with ball valves are essential instrument widely used in various industries to measure and control fluid pressure.

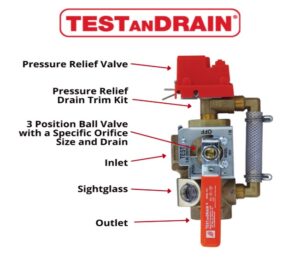

TEST AND DRAIN VALVE

These valves are used for the testing systems and drain the unnecessary fluids from the systems. They are assembled on fire pipe line to separate the fire area into small distribution zone for indication and control. Because of fire sprinklers or test valve activation, the indicator detects water flow and transmits signals to control system. After fire suppression butterfly valve gets signal, to indicate manual shut down flow for recovering the system.

Uses .    Zone Control Valve Assembly has several important uses in fire sprinkler system, the main uses are:

1. Selective Water Control:

Allows for controlling the water flow to specific zone of the building

1. Testing And Inspection:

Facilitates testing and inspection of specific zone of the sprinklers system.

2. Emergency Response:

Enables selective activation in case of a fire or other emergency

3. Pressure Management:

Assist in managing and balancing water pressure in different zones.

Advantages

ZCVA offer several advantages in management and operation of fire sprinklers system. Here are some:

1. Allows for precise control over individual zones of a fire sprinkler system
2. Facilitates easier maintenance.
3. Simplifies the testing and inspection process
4. Enhances the ability to respond to fire effectively.
5. Helps manage and balance water pressure across different zones.
6. May reduce overall operational and maintenance costs.

Key Features

Easy to operate, Pressure Control and clear indicators of valve status. They are built to last and often work with fire alarm for automatic response. By providing targeted control and flexibility. ZCVA help ensure that your fire protection system work efficiently and meets safety standards.

Zone Control Valve Assembly Price in Pakistan

Adams Fire Tech is one of the leading fire and safety equipment stockiest and supplier with its services spread all over Pakistan covering Islamabad, Lahore, Rawalpindi, Multan, Peshawar, Karachi etc. For all your needs of fire safety equipment or price estimates, please contact our sales team at whatsapp 03457772324 or email us sales@adamsfireteh.com

Conclusion

The Zone Control Valve Assembly (ZCVA) is essential for managing fire sprinkler systems. It combines a Signal Butterfly Valve, Water Flow Indicator, Pressure Gauge, and Test and Drain Valve to control water flow in specific zones, facilitating maintenance, testing, and emergency response. By allowing selective activation and isolating zones, the ZCVA enhances system reliability, improves efficiency, and ensures effective fire protection while potentially reducing operational costs.
